Specifications
A unit for everyone
A size and shape for every need
One size doesn’t fit all. We know this, that’s why Flexeserve Zone is available in a range of shapes and sizes, as you’ll discover below.
You can select the unit that works for your business, premises and product range, be it a standalone floor unit that sits alongside your fridges – holding a wide range of savoury meals, or a smaller countertop unit filled with pastries.
With features, such as double-stacking, you can achieve a high capacity of stock for the unit’s size and, because Flexeserve Zone creates a consistent temperature throughout each zone, food quality is never compromised.
2 Tier – Countertop
| MODEL | 400 | 600 | 1000 |
|---|---|---|---|
| HEIGHT | 34.8" | 34.8" | 34.8" |
| WIDTH | 14" | 21.8" | 38.3" |
| DEPTH | 26" | 26" | 26" |
| WEIGHT | 163lb | 190lb | 278lb |
| POWER SUPPLY | |||
| UK / EU | 13A 1Ph / 16A 1Ph | 13A 1Ph / 16A 1Ph | 13A 1Ph / 16A 1Ph |
| ITALY / SWITZERLAND | 10A 1 Ph | 10A 1 Ph | |
| NORTH AMERICA | Nema 6-15P Plug 1Ph | Nema 6-15P Plug 1Ph | Nema 6-15P Plug 1Ph |
| AUSTRALIA / NEW ZEALAND | 10A 1 Ph | 10A 1 Ph | 15A 1 Ph |
3 Tier
| MODEL | 400 | 600 | 1000 | 400 | 600 | 1000 |
|---|---|---|---|---|---|---|
| MODEL TYPE | CURVED | CURVED | CURVED | SQUARE | SQUARE | SQUARE |
| HEIGHT | 59.8" | 59.8" | 59.8" | 59.8" | 59.8" | 59.8" |
| WIDTH | 14"* | 21.8" | 38.3" | 14"* | 21.8" | 38.3" |
| DEPTH | 32.6" | 32.6" | 32.6" | 33.6" | 33.6" | 33.6" |
| WEIGHT | 291lb | 320lb | 507lb | 300lb | 326lb | 522.5lb |
| POWER SUPPLY | ||||||
| UK / EU | 13A 1Ph / 16A 1Ph | 13A 1Ph / 16A 1Ph | 32A 1Ph, 16A 3Ph | 13A 1Ph / 16A 1Ph | 13A 1Ph / 16A 1Ph | 32A 1Ph, 16A 3Ph |
| NORTH AMERICA | Nema 6-15P Plug 1Ph | Nema 6-15P Plug 1Ph | Nema 6-30P Plug 1Ph | Nema 6-15P Plug 1Ph | Nema 6-15P Plug 1Ph | Nema 6-30P Plug 1Ph |
| AUSTRALIA / NEW ZEALAND | 10A 1Ph | 10A 1Ph | 32A 1Ph or 16A 3Ph | 10A 1Ph | 10A 1Ph | 32A 1Ph or 16A 3Ph |
| ADDITIONAL INFORMATION |
|---|
| *Unit width 356mm/14", overall width 450mm/17.7" to accommodate side wing stabilising brackets fixed to castors. |

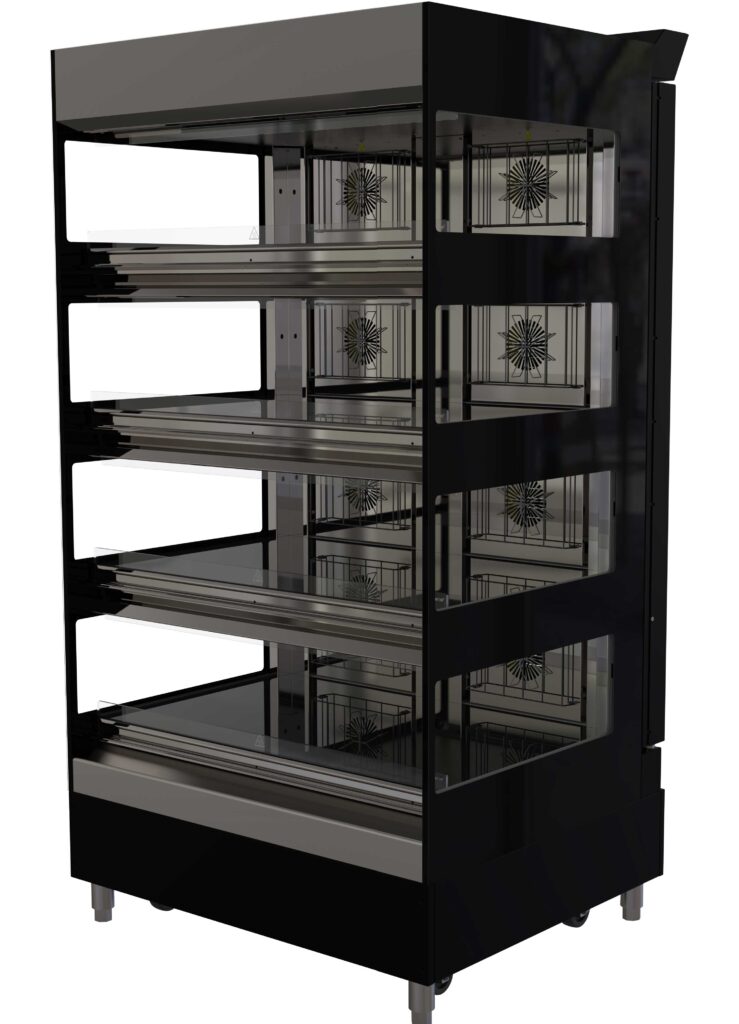

4 Tier – Our most popular unit Extremely versatile, the 4-tier square unit is the most popular unit for mid-size food-to-go outlets. Fitting into a variety of locations and aligning with fridge units, the 4 tiers enable an even split of full day part menu items.
| MODEL | 400 | 600 | 1000 | 400 | 600 | 1000 |
|---|---|---|---|---|---|---|
| MODEL TYPE | CURVED | CURVED | CURVED | SQUARE | SQUARE | SQUARE |
| HEIGHT | 73.4" | 73.4" | 73.4" | 73.4" | 73.4" | 73.4" |
| WIDTH | 14"* | 21.8" | 38.3" | 14"* | 21.8" | 38.3" |
| DEPTH | 34" | 34" | 34" | 33.6" | 33.6" | 33.6" |
| WEIGHT | 410lb | 462.9lb | 643.7lb | 416.6lb | 469.5lb | 650.3lb |
| POWER SUPPLY | ||||||
| UK / EU | 13A 1Ph / 16A 1Ph | 13A 1Ph / 16A 1Ph | 32A 1Ph, 16A 3Ph | 13A 1Ph / 16A 1Ph | 13A 1Ph / 16A 1Ph | 32A 1Ph, 16A 3Ph |
| NORTH AMERICA | Nema 6-20P Plug 1Ph | Nema 6-20P Plug 1Ph | Nema 6-30P Plug 1Ph | Nema 6-20P Plug 1Ph | Nema 6-20P Plug 1Ph | Nema 6-30P Plug 1Ph |
| AUSTRALIA / NEW ZEALAND | 15A 1Ph | 15A 1Ph | 32A 1Ph or 16A 3Ph | 15A 1Ph | 15A 1Ph | 32A 1Ph or 16A 3Ph |
| ADDITIONAL INFORMATION |
|---|
| *Unit width 356mm/14", overall width 450mm/17.7" to accommodate side wing stabilising brackets fixed to castors. |
5 Tier
| MODEL | 600 | 1000 | 600 | 1000 |
|---|---|---|---|---|
| MODEL TYPE | CURVED | CURVED | SQUARE | SQUARE |
| HEIGHT | 77.5" | 77.5" | 77.5" | 77.5" |
| WIDTH | 21.8" | 38.3" | 21.8" | 38.3" |
| DEPTH | 34.3" | 34.3" | 33.6" | 33.6" |
| WEIGHT | 485lb | 650.5lb | 491.5lb | 656.9lb |
| POWER SUPPLY | ||||
| UK / EU | 16A 1Ph | 32A 1Ph, 16A 3Ph | 16A 1Ph | 32A 1Ph, 16A 3Ph |
| NORTH AMERICA | Nema 6-15P Plug 1Ph | Nema 6-30P Plug 1Ph | Nema 6-15P Plug 1Ph | Nema 6-30P Plug 1Ph |
| AUSTRALIA / NEW ZEALAND | 15A 1Ph | 32A 1Ph or 16A 3Ph | 15A 1Ph | 32A 1Ph or 16A 3Ph |
Curved Flexeserve Zone units
Our Flexeserve Zone units are also available with a curved, glazed, end panel option.
3, 4 and 5 tier units.
